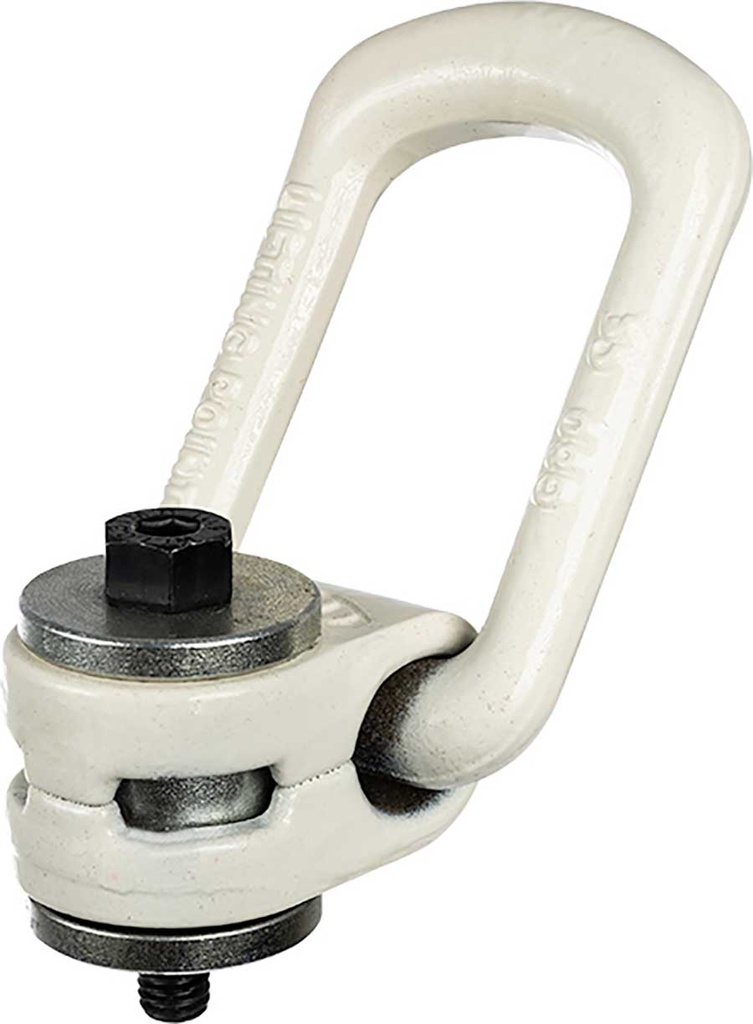

BLP VL Oogbout, draai- en kantelbaar, grade 100
- 360 graden draaibaar, 90 graden kantelbaar.
- Grade 100 staal.
- Last dragende onderdelen 100% magnaflux-scheur gedetecteerd.
- Magnaflux-scheurdetectie wordt 100% bij elke batch uitgevoerd.
- Conform EN 1677
Productinformatie
Specificaties
| Artikelcode | Werklast (t) | Maat | Moment (Nm) | A (mm) | B (mm) | C (mm) | D (mm) | X (mm) | F (mm) | G (mm) | H (mm) | S (mm) | SW (mm) | Gewicht (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HO_BLPVL-08 | 0.3 | M8 | 30 | 33 | 37 | 35 | 14 | 11 | 98 | 57 | 36 | 6 | 13 | 0.5 |
| HO_BLPVL-12 | 1.0 | M12 | 100 | 33 | 37 | 44 | 14 | 18 | 98 | 57 | 36 | 8 | 19 | 0.5 |
| HO_BLPVL-16 | 1.5 | M16 | 150 | 33 | 37 | 46 | 14 | 24 | 98 | 57 | 36 | 10 | 24 | 0.5 |
| HO_BLPVL-20 | 2.5 | M20 | 250 | 50 | 54 | 57 | 17 | 30 | 140 | 82 | 44 | 12 | 30 | 1.3 |
| HO_BLPVL-30 | 5.0 | M30 | 400 | 60 | 65 | 79 | 23 | 38 | 170 | 99 | 62 | 17 | 41 | 3.1 |
| HO_BLPVL-42 | 15.0 | M42 | 1500 | 77 | 85 | 101 | 27 | 62 | 225 | 124 | 78 | 22 | 55 | 10.8 |
| HO_BLPVL-48 | 20.0 | M48 | 2000 | 95 | 104 | 102 | 36 | 63 | 256 | 158 | 86 | 24 | 65 | 11.6 |
