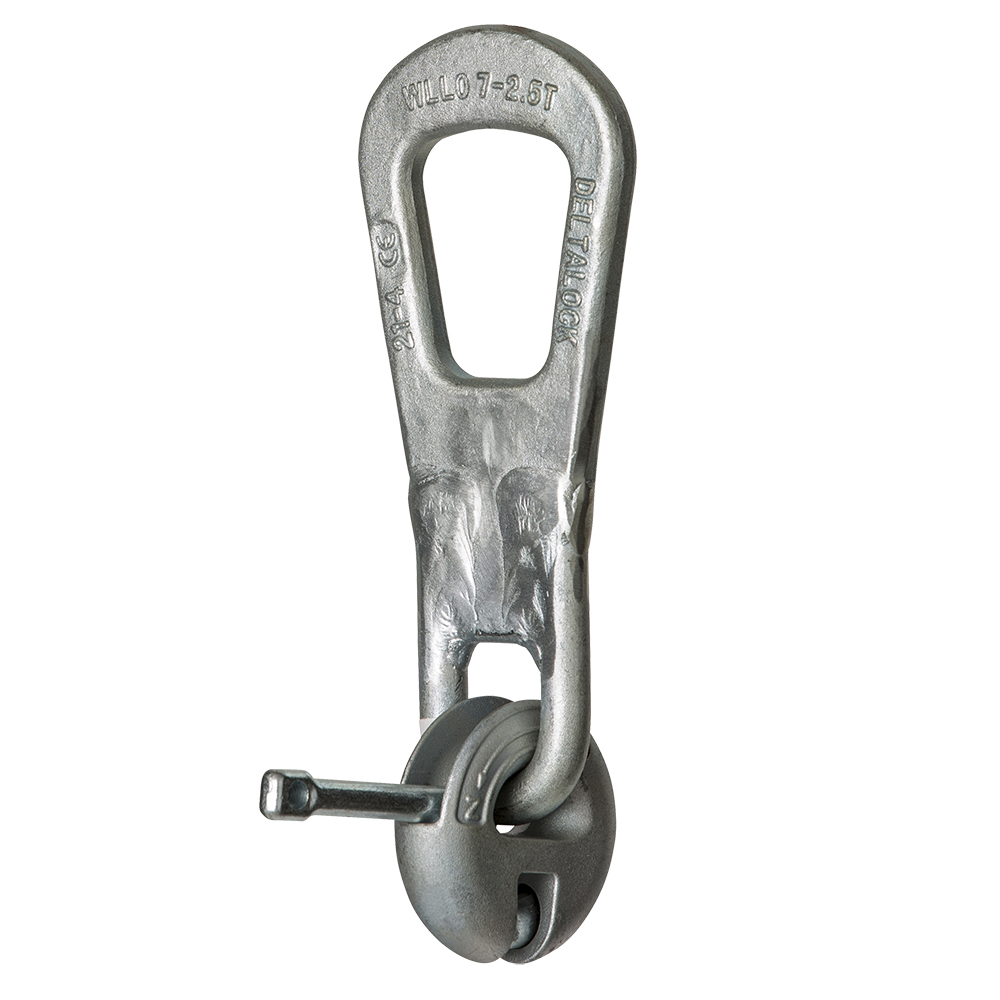

Deltalock Kogelkophaak met ringkoppeling
Deltalock kogelkophaak met ringkoppeling, conform EN 1677.
Productinformatie
Specificaties
| Specificaties | Afmetingen | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Werklast (ton) | Gewicht (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | J (mm) | K (mm) | L (mm) |
| KKH-R 2.5 | 0,7 - 2,5 | 1,6 | 95 | 70 | 59 | 27 | 35 | 30 | 12 | 58 | 79 | 13 | 12 | 264 |
| KKH-R 5 | 3 - 5 | 3,6 | 117 | 85 | 66 | 37 | 45 | 42 | 17 | 82 | 107 | 17 | 18 | 333 |
| KKH-R 10 | 5,3 - 10 | 9 | 148 | 110 | 85 | 50 | 56 | 52 | 25 | 110 | 148 | 24 | 22 | 424 |
Eigenschappen
- Artikelnummer
- HO_KKH-R-025
- Fabrikantcode
- YE.8.100.025
- EAN-nummer
- 8719482014338
- Gewicht
- 1.58
- Merk
- DELTA
