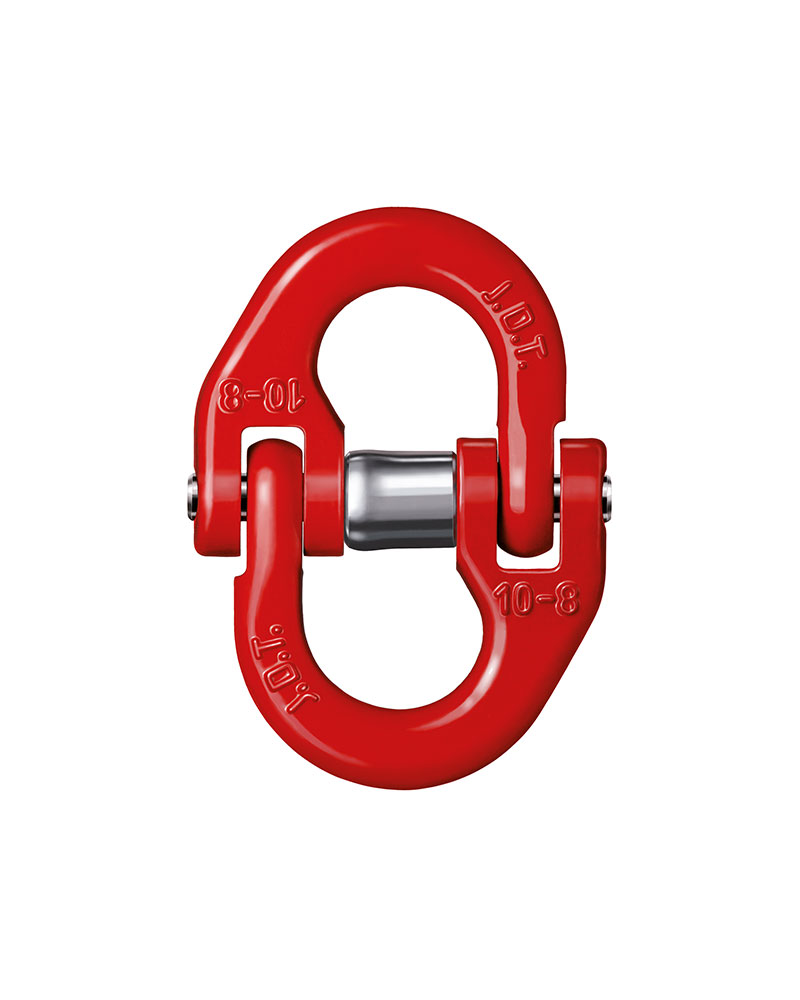

JDT NORM8 Verbindingsschalm, grade 80
- Voor het verbinden van kettingonderdelen.
- Werklast van 1,12 tot 40 ton.
- Staal van Grade 80.
- Conform EN 1677.
Productinformatie
Specificaties
| Artikelcode | Werklast (t) | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | g (mm) | t (mm) | Gewicht (kg) |
|---|---|---|---|---|---|---|---|---|---|
| KW_JDTVS80.0112 | 1,12 | 11 | 19 | 40 | 8 | 17 | 17 | 45 | 0,1 |
| KW_JDTVS80.0200 | 2,0 | 14 | 22 | 53 | 11 | 22 | 21 | 59 | 0,2 |
| KW_JDTVS80.0315 | 3,15 | 18 | 29 | 68 | 12 | 26 | 28 | 70 | 0,3 |
| KW_JDTVS80.0530 | 5,3 | 23 | 33 | 77 | 16 | 32 | 30 | 87 | 0,6 |
| KW_JDTVS80.0800 | 8,0 | 27 | 40 | 94 | 22 | 39 | 35 | 103 | 1,2 |
| KW_JDTVS80.1000 | 10,0 | 37 | 51 | 120 | 23 | 48 | 48 | 125 | 1,6 |
| KW_JDTVS80.1250 | 12,5 | 37 | 50 | 112 | 24 | 47 | 45 | 125 | 2,0 |
| KW_JDTVS80.1500 | 15,0 | 40 | 54 | 120 | 28 | 52 | 48 | 133 | 2,6 |
| KW_JDTVS80.2120 | 21,2 | 50 | 70 | 161 | 30 | 65 | 61 | 168 | 5,0 |
| KW_JDTVS80.3150 | 31,5 | 55 | 79 | 186 | 34 | 73 | 71 | 190 | 6,8 |
| KW_JDTVS80.4000 | 40,0 | 70 | 97 | 227 | 46 | 84 | 85 | 235 | 15,6 |
Eigenschappen
- Artikelnummer
- KW_JDTVS80-0112
- EAN-nummer
- KW_JDTVS80-0112
- Gewicht
- 0.08
- Sterkteklasse
- Grade 80
- Merk
- JDT
